Water Meter Woltex

Deskripsi

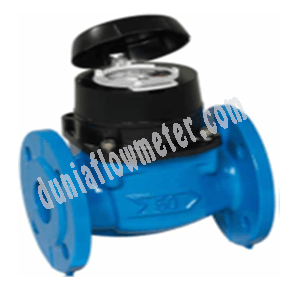

Water Meter Woltex

Water Meter Woltex

Merk : ITRON

Size 2″

Horizontal Woltmann Meter With Extented Accuracy Range For Water Distribution Applications.

Woltex M Is a Horizontal Woltmann Meter Available In Size From DN 50 To 500.

With Is Extented Accuracy Range It Is Dedicated To All Application Around Water Distribution Where High Reliability And Accuracy Is Requested.

FEATURES AND BENEFITS

-Hermetically Sealed Register ( Copper Can / Mineral Glass Envelope )

-Extended Range Approval

-Interchangeable Approved Mechanisms Without Re – Calibration

METROLOGICAL CHARACTERISTICS

Typical Performance :

Nominal Diameter  ( DN )  mm / inchi  50 / 2  Inchi

Starting Flowarate    : 0,19 m³/h

Accuracy  ± 2% From *    : 0,4 m³/h

Accuracy  ± 5% From *    : 0,35 m³/h

Admissible Peak Flow   ( 10’ Max )     : 90 m³/h

Admissible Flowrate  ( Continuous )   : 50 m³/h

Heads Loss at Qmax     : 0.2 bar

Max Admissible Temperature   : 50ᴼC

Max Admissible Pressure     : 20 bar

Min . Scale Interval    : 0.2 L

Indicating Range : 999999.99 M³

Cyble HF Pulse Wieght  : 10 L
