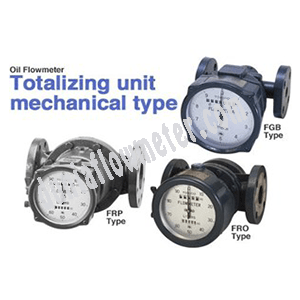

Flowmeter Tokico FRO0541-02X

Deskripsi

Flowmeter Tokico FRO0541-02X

Merk : Tokico

Flowmeter Tokico FRO0541-02X

Spesification  :

Size      :  2 inchi / DN 50 mm

Accuracy                                   :  ±0.5%

Flow Range                               :  Refer To Next Page

Max.Working Pressure           :  1 MPa

Hydraulic Test Pressure          :  2 MPa

Max.Working Temperature   :  Kerosene , Dies / Light Oil  :   50ᴼC

A , B , C Heavy Oil                 :   100ᴼC

Flange Rating : JIS 10K FF

Material ( Body )  :  FC 250 ( Cast Iron )

(Rotor )  : ADC 12 ( Alluminium Alloy Die Cast )

Counter Unit : 04X  : Totalizing Counter ( 7 Digits )

Reset Counter ( 5 Digits )

02X  :  Totalizing Counter ( 7 Digits )

Electrical Transmitter Unit : Transmitter :  Microswitch ( 02M , 04M )

Output Pulse          :  Max. 5Hz

Contact Life Time  :  5 Million Times

Cable                        :   Double Core Shield Cable

Flow Direction  : Right → Left ( Standard )

Painting Color   : Munsell 1.4PB 3.1 / 1.2

Model : FRO 0541-02X

Condition : Intermittent

Flow Range ( m³/h )  Kerosene , Light Oil ( 0.9 – 5mPa”s ) : 1.5 – 15

Heavy Oil ( 5 – 300mPa”s )                  :  0.25 – 15

Condition : Continuous

Flow Range ( m³/h )  Kerosene , Light Oil ( 0.9 – 5mPa”s ) :  1.5 – 9

Heavy Oil ( 5 – 300mPa”s )                  :  0.25 – 13

Untuk Info katalog Product Lebih Lengkap & Informasi Hubungi :

Sales : Leo

Hp : 082 122 792 896

Atau E-mail : sales@duniaflowmeter.com

Brand  yang Kami Jual  TOKICO , LC , ITRON , POWOGAZ , SENSUS , GAZZO , OPW , OVAL , NITTO , AVERY HARDOLL , MEC NAUGHT , DLL .

Jual Flowmeter Tokico , Itron flow Meter , Sensus Flow Meter  , Flowmeter Air Limbah
