Jual Flowmeter Avery Hardoll Type CM1000

Compare

Description

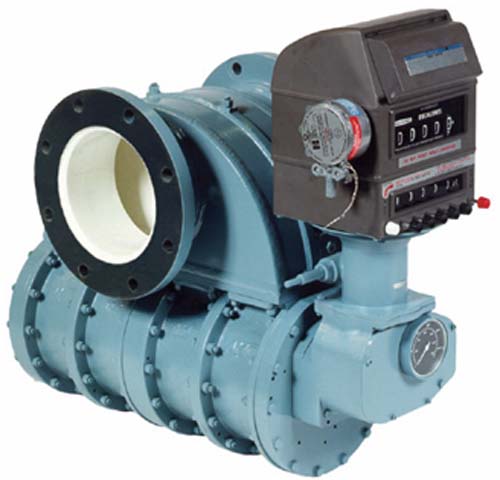

averyhardollcmseri1

jual Flowmeter Avery Hardoll

Type CM 1000 ( Single Capsule )

  • Positive displacement liquid measuring instruments
  • Free from installation effect
  • Accuracy consistent between calibration levels
  • Suitable for use in distribution depots and aviation refuelling vehicles
  • Stepless calibration system
  • Flow Rates of 22 igpm (100 lpm) to 1200 igpm (5500 lpm)

Jual Flowmeter Avery Hardoll

CM SERIES METERS

Avery-Hardoll bulkmeters are precision made, positive displacement, liquid measuring instruments,which maintain accurate metering over long periods of operation. Simplicity of design and construction together with sustained accuracy make these meters ideally suited for use on aviation refuelling vehicles and in oil terminals.

OPERATION

The positive displacement principle is the ONLY accurate method of measuring fluid flow. No other technology can achieve such accuracy because measurement becomes inferred, that is indirect and subject to assumption.The Avery Hardoll bulkmeter directly converts volume to rotational output with minimum scope for error and with minimal disturbance from surrounding conditions, eg. turbulence from nearby valves, bends, etc.



MANIFOLD:                    Ductile iron (single/double capsule)

Fabricated steel (all builds)

Cast Aluminium (6’’ Triple only)

BODY: Ni-Resist cast iron

VANES: Carbon

ROTOR:  Aluminium or Ni-Resist cast iron

COVERS:  Carbon Steel

BEARINGS:  Stainless steel

SEALS:  High Nitrile or Fluorocarbon

SPECIFICATION

Maximum Working pressure:  10.5 bar (150 psi)

Test pressure:  21 bar (300 psi)

Temperature range:  -28ºC to 100ºC

Volume per revolution:   2.27 litres (Single capsule)

4.54 litres (Double capsule)

6.82 litres (Triple capsule)

9.08 litres (4 capsule)

Repeatability typically:  0  .02%

CM Series Meters Flow Range
